W1TR 40 Meter Ground Plane

Updated 05-Dec-2005  12:53


[back to W1TR Antennas and QTH]

[back to W1TR Home]


The 40 meter ground plane is constructed from #12 stranded insulated wire available in most hardware stores.

The feedpoint uses PVC a pipe T-section.  The coax loops through the T-section to provide strain relief.  Wire is tied using a square knot to the T-section and also to rope which is then tied to trees (radials) or which goes over the tops of trees.  The “springiness” of the small branches appears to help the wire antennas survive 60 knot winds with little or no damage.


The 40 meter ground plane also works well on 15 meters on the 3rd harmonic of the fundamental frequency.

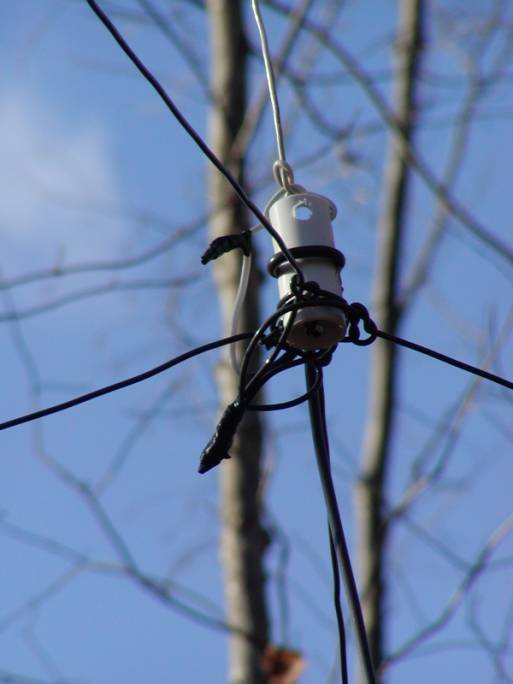

Feedpoint of 40 meter ground plane

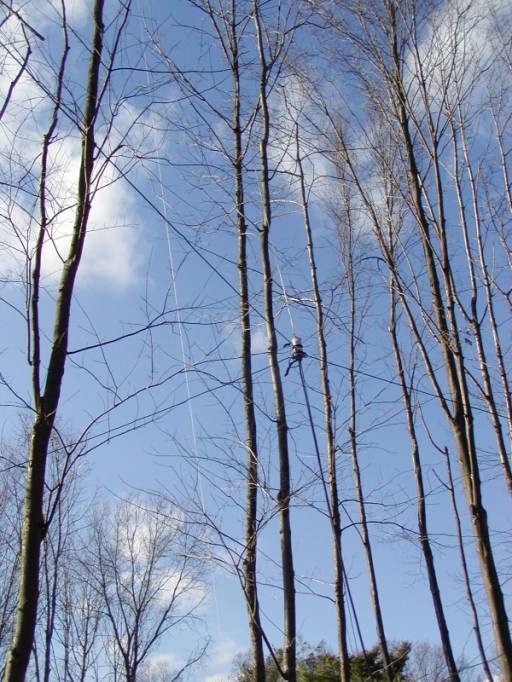

More of 40 meter ground plane
