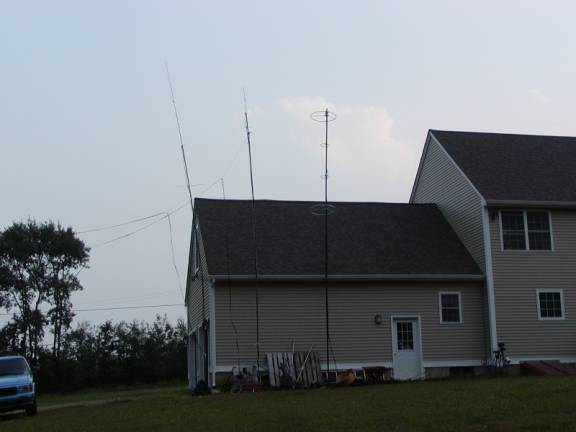

The 6 and 2 meter stacked halos (from KB6KQ) are mounted on a 25 foot military surplus mast and attached to the side of the garage.

9913 coax leads from each antenna to Ameritron RCS-8V antenna switches and into the shack.

The 6 meter halos are stacked about 11 feet (44 inches x 3 minus a little, the length of the mast sections)

The 2 meter halos are stacked about 3 feet (44 inches minus a little, the length of a mast section)



When the weather breaks, an additional 3 or 4 mast sections will be added, and the mast will be mounted on the 2 story section of the house.

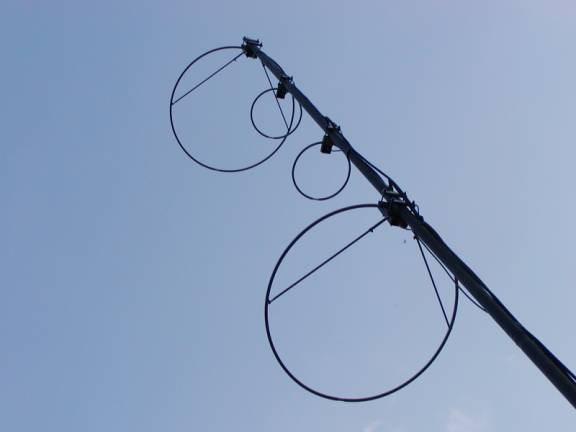

6 and 2 meter stacked halos



VHF and UHF antennas
