VHF Tower Base Construction

Updated 11-Aug-2008  10:35



[back to VHF Tower and Beams]

[back to W1TR Antennas and QTH]

[back to W1TR Home]

Tower Base Construction Week (late June 2008)

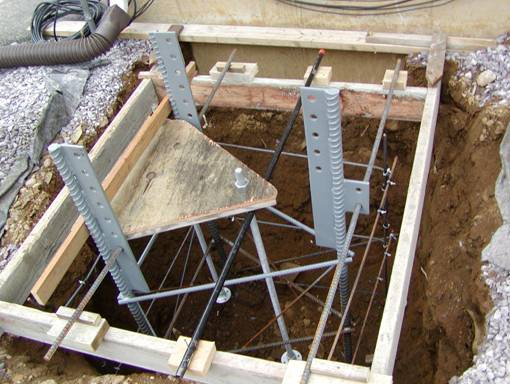

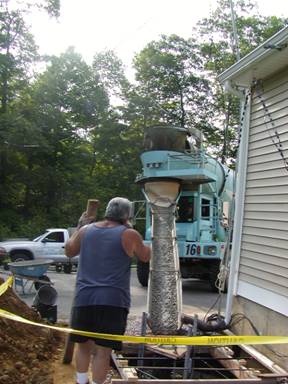

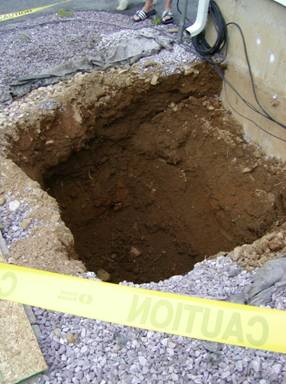

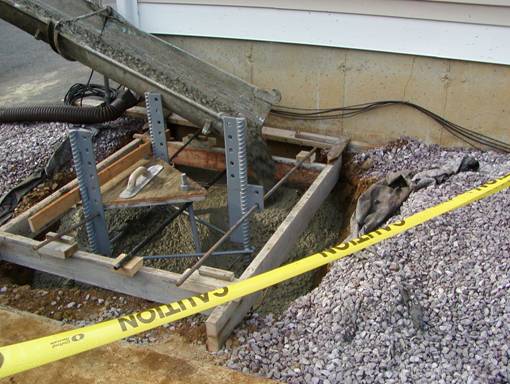

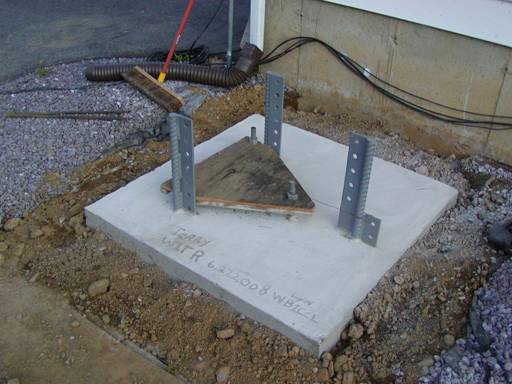

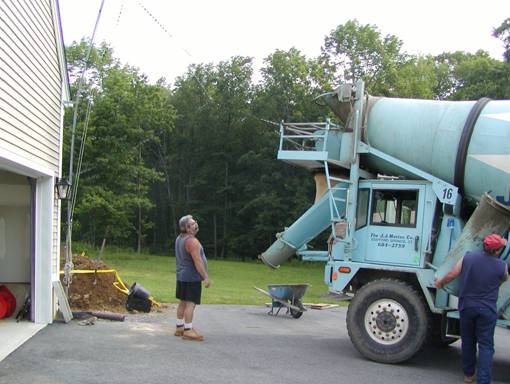

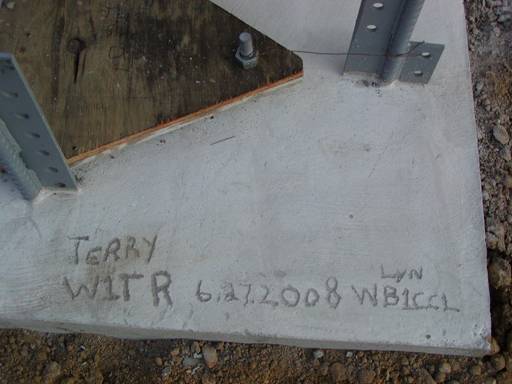

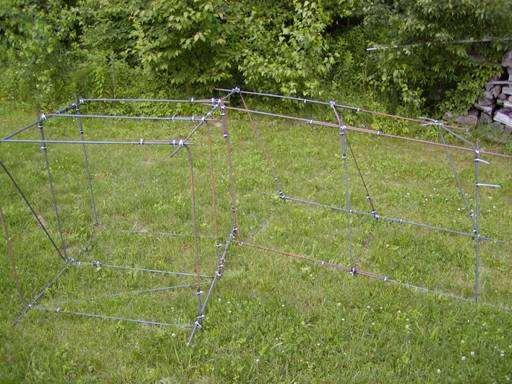

First, Frank made up the rebar cages for attachment below the RCB-70 tower base assemblies, then he dug the holes with a small excavator… hmm no rocks? Is this REALLY New England?  Frank made up a fine set of forms and braces to position the tower bases and rebar, and make square corners on the top of the concrete base.  Then the cement truck came and did it’s thing, and Frank finished off the top of the concrete bases with the trowel.  Of course we had to make graffiti in the concrete according to tradition.



Tower - Rebar Cages.JPG Tower - Bse Hole 5 ft A.JPG Tower HG52SS Installation 4.JPG Tower HG52SS Pouring Concrete 2.JPG Tower HG52SS Pouring Concrete 8.JPG Tower HG52SS Pouring Concrete 9.JPG Tower HG52SS Base 2.JPG Tower HG52SS Base 3.JPG
